Why Variable Frequency Technology Matters in Concrete Vibrators
Release time: 2026-09-30
Concrete is the foundation of modern construction, forming the backbone of everything from towering skyscrapers to robust infrastructure. However, the strength and durability of concrete structures depend heavily on a crucial process: consolidation. Proper consolidation removes entrapped air and ensures a uniform, dense mix, which is essential for achieving the required structural integrity. For decades, traditional concrete vibrators have been the standard tool for this job. Yet, as construction demands evolve towards higher efficiency and better quality, traditional methods often fall short. This is where variable frequency technology emerges as a game-changer. This article explores why variable frequency technology matters in concrete vibrators, examining its mechanisms, benefits, and impact on modern construction practices.
Understanding Concrete Consolidation
Before delving into the technology, it is important to understand the goal of concrete consolidation. When concrete is poured, it contains a significant amount of entrapped air, which can account for up to 20% of its volume. If left unconsolidated, these air pockets create voids, often referred to as honeycombing. These voids significantly weaken the concrete, reduce its load-bearing capacity, and increase its permeability to water and corrosive agents, ultimately shortening the lifespan of the structure.
Consolidation, typically achieved through vibration, serves two primary purposes:
- Liquefaction: The vibration temporarily reduces the internal friction between the aggregate particles and the cement paste, turning the stiff concrete mix into a more fluid state. This allows the concrete to flow smoothly around reinforcing steel (rebar) and fill all corners of the formwork.
- De-aeration: As the concrete becomes fluid, the lighter entrapped air bubbles rise to the surface and escape.
The Limitations of Traditional Vibrators
Traditional internal concrete vibrators operate at a fixed, high frequency, typically ranging from 10,000 to 12,000 vibrations per minute (vpm). While effective for standard concrete mixes, this “one-size-fits-all” approach has several limitations:
- Inflexibility: Different concrete mixes (e.g., high-slump vs. low-slump) require different vibration frequencies for optimal consolidation. A fixed-frequency vibrator cannot adapt to these variations.
- Segregation Risk: Over-vibrating, especially with a high-frequency tool in a highly fluid mix, can cause segregation. The heavier aggregates sink to the bottom, while the lighter cement paste and water rise to the top, resulting in a weak, uneven structure.
- Energy Inefficiency: Running constantly at maximum frequency consumes more power and leads to faster wear and tear on the equipment.

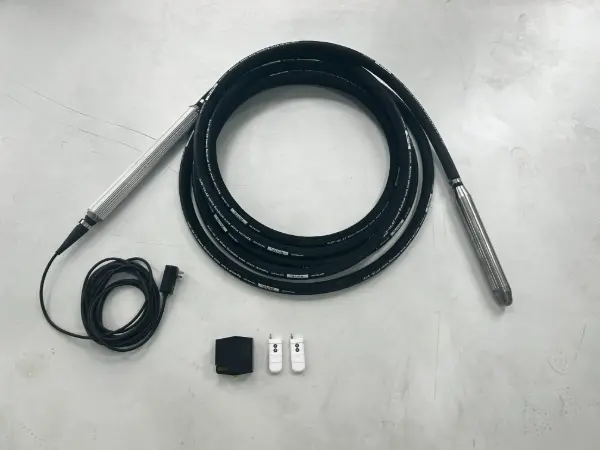

What is Variable Frequency Technology?
Variable frequency technology in concrete vibrators addresses the limitations of traditional models by allowing the operator to adjust the vibration frequency to suit the specific requirements of the concrete mix and the pour conditions.
This is typically achieved through the integration of an electronic inverter or a variable frequency drive (VFD). These systems convert the standard electrical input into a customized output, enabling precise control over the motor’s speed and, consequently, the vibration frequency. The frequency can be adjusted seamlessly, often ranging from lower frequencies suitable for stiff, low-slump mixes to higher frequencies ideal for more fluid applications.
The Core Benefits of Variable Frequency Vibrators
The adoption of variable frequency technology offers a multitude of benefits that directly impact the quality, efficiency, and economics of concrete construction.
1. Optimized Consolidation Across Diverse Mixes
The primary advantage is the ability to tailor the vibration to the specific concrete mix. Modern construction frequently utilizes specialized mixes, such as Self-Consolidating Concrete (SCC) or high-strength, low-slump mixes.
- Low-Slump Concrete: Stiff mixes require higher amplitude (the distance the vibrator head moves) and lower frequency to effectively move the large aggregates and overcome internal friction. A variable frequency vibrator can be dialed down to provide this necessary power.
- High-Slump Concrete: Fluid mixes require higher frequency and lower amplitude to gently remove air bubbles without causing the aggregates to settle. The frequency can be increased to achieve optimal de-aeration without risking segregation.
By matching the frequency to the mix, operators ensure thorough consolidation, eliminating honeycombing and maximizing the structural integrity of the finished product.
2. Prevention of Concrete Segregation
Segregation is a critical defect that can compromise the safety of a structure. Traditional fixed-frequency vibrators, if left in the mix too long, will almost inevitably cause segregation, particularly in wetter mixes.
Variable frequency vibrators mitigate this risk significantly. Operators can start with a higher frequency for initial liquefaction and then reduce the frequency for the final de-aeration phase, or use a lower frequency throughout for highly fluid mixes. This precise control ensures the aggregate remains evenly distributed throughout the cement matrix.
3. Enhanced Energy Efficiency and Equipment Longevity
Running a motor continuously at its maximum capacity generates excess heat and accelerates wear on internal components. By allowing the vibrator to operate at lower frequencies when appropriate, variable frequency technology reduces the overall strain on the equipment.
- Reduced Wear: Lower operating speeds mean less friction and heat generation within the vibrator head and the flexible shaft, extending the lifespan of these critical components.
- Energy Savings: Operating at optimized, often lower, frequencies consumes less electrical power or fuel, contributing to lower operating costs on the job site.
4. Improved Operator Ergonomics and Safety
Prolonged use of high-frequency concrete vibrators exposes operators to Hand-Arm Vibration Syndrome (HAVS), a debilitating condition that causes pain, numbness, and loss of dexterity.
Variable frequency vibrators often incorporate advanced dampening systems and, by operating at lower frequencies when possible, significantly reduce the vibration transmitted to the operator’s hands and arms. This improves comfort, reduces fatigue, and enhances overall site safety.
Comparing Traditional vs. Variable Frequency Vibrators
To clearly illustrate the advantages, the following table summarizes the key differences between traditional fixed-frequency vibrators and those equipped with variable frequency technology.
| Feature | Traditional Fixed-Frequency Vibrators | Variable Frequency Vibrators |
| Operating Frequency | Fixed (typically 10,000 – 12,000 vpm) | Adjustable (e.g., 6,000 – 12,000 vpm) |
| Adaptability to Mixes | Low; “One-size-fits-all” approach | High; Customizable to slump and aggregate size |
| Risk of Segregation | High, especially with over-vibration | Low, due to controlled frequency |
| Energy Consumption | High (constant maximum output) | Optimized (variable output based on need) |
| Equipment Wear & Tear | High (continuous high-speed operation) | Reduced (variable speed reduces strain) |
| Operator Comfort (HAVS risk) | Lower comfort, higher risk of HAVS | Improved comfort, reduced HAVS risk |
| Initial Investment Cost | Generally lower | Generally higher |
| Long-term ROI | Moderate (higher maintenance/replacement) | High (extended lifespan, better quality control) |
The Role of Inverters in Variable Frequency Systems
The heart of a modern variable frequency concrete vibrator is often the high-frequency inverter. These devices take standard single-phase power (e.g., 115V or 230V) and convert it into the specific voltage and high frequency required by the vibrator motor.
Advanced inverters offer several sophisticated features:
- Load Sensing: Some inverters can sense the resistance of the concrete mix and automatically adjust the power output to maintain a constant vibration frequency, even in stiff mixes.
- Protection Circuits: They incorporate protections against over-voltage, under-voltage, short circuits, and thermal overload, safeguarding both the equipment and the operator.
- Portability: Modern inverters are increasingly compact and lightweight, making them easy to move around complex job sites.
Choosing the Right Variable Frequency Vibrator
Selecting the appropriate variable frequency vibrator requires considering several factors related to the specific construction project:
- Head Diameter: The diameter of the vibrator head determines its radius of action. Larger heads are suitable for wide, open pours (like slabs), while smaller heads are necessary for congested areas with dense rebar.
- Frequency Range: Ensure the vibrator offers a frequency range that accommodates the types of concrete mixes typically used on your projects.
- Power Source: Variable frequency vibrators can be powered by electricity (requiring access to grid power or generators) or batteries. Battery-powered models offer unparalleled mobility but may have limited run times for continuous, large-scale pours.
- Ergonomics: Look for models with vibration-dampening handles and ergonomic designs to minimize operator fatigue.
Best Practices for Using Variable Frequency Vibrators
Even with advanced technology, proper technique is essential for optimal consolidation.
- Vertical Insertion: Insert the vibrator head vertically into the concrete at regular intervals, allowing the radii of action to overlap slightly.
- Rapid Insertion, Slow Withdrawal: Insert the head quickly to the bottom of the layer being consolidated (and slightly into the layer below, if applicable) and withdraw it slowly (about 1 inch per second). This slow withdrawal allows the concrete to flow back into the space left by the vibrator head and allows trapped air to escape.
- Avoid Dragging: Never use the vibrator to move concrete laterally within the formwork. This is a primary cause of segregation.
- Monitor the Surface: Stop vibrating when the concrete surface becomes shiny and leveled, and large air bubbles stop emerging. Continued vibration beyond this point is unnecessary and risks segregation.
Conclusion
The shift towards variable frequency technology in concrete vibrators represents a significant advancement in construction methodology. By moving away from the rigid, fixed-frequency approach, contractors gain the flexibility to optimize consolidation for a wide variety of concrete mixes and pour conditions. This adaptability ensures superior structural integrity, minimizes the risk of defects like honeycombing and segregation, and extends the life of both the equipment and the concrete structure itself. While the initial investment may be higher, the long-term benefits in quality, efficiency, and safety make variable frequency technology an indispensable tool for modern, high-performance concrete construction.
FAQs
Can I use a variable frequency vibrator on standard, everyday concrete mixes?
Yes, absolutely. While variable frequency technology excels with specialized mixes like low-slump or Self-Consolidating Concrete (SCC), it is also highly effective for standard mixes. The advantage is that you can precisely tune the frequency to achieve the fastest and most thorough consolidation without the risk of over-vibrating, which is a common issue with traditional, high-speed fixed-frequency models.
How do I know what frequency to set for a specific concrete mix?
The optimal frequency depends primarily on the slump and the aggregate size. Generally, stiff, low-slump mixes require lower frequencies and higher amplitude to move the heavy materials. Conversely, highly fluid mixes require higher frequencies and lower amplitude for gentle de-aeration. It is best to start at a moderate frequency, observe the concrete’s reaction (liquefaction and air bubble release), and adjust the frequency up or down until the desired consolidation behavior is achieved. Experience and consultation with the concrete supplier are also valuable guides.
Are variable frequency vibrators more difficult to maintain than traditional models?
In many ways, they can be easier to maintain over the long term. Because variable frequency models allow operators to run the equipment at lower speeds when full power isn’t needed, there is significantly less heat generation and friction. This reduced strain extends the lifespan of the bearings, the motor, and the flexible shaft. While the electronic components (like the inverter) are more sophisticated, they are generally robust and protected by built-in safety circuits. Routine maintenance primarily involves standard checks and cleaning, similar to traditional units, but with the added benefit of reduced mechanical wear.
